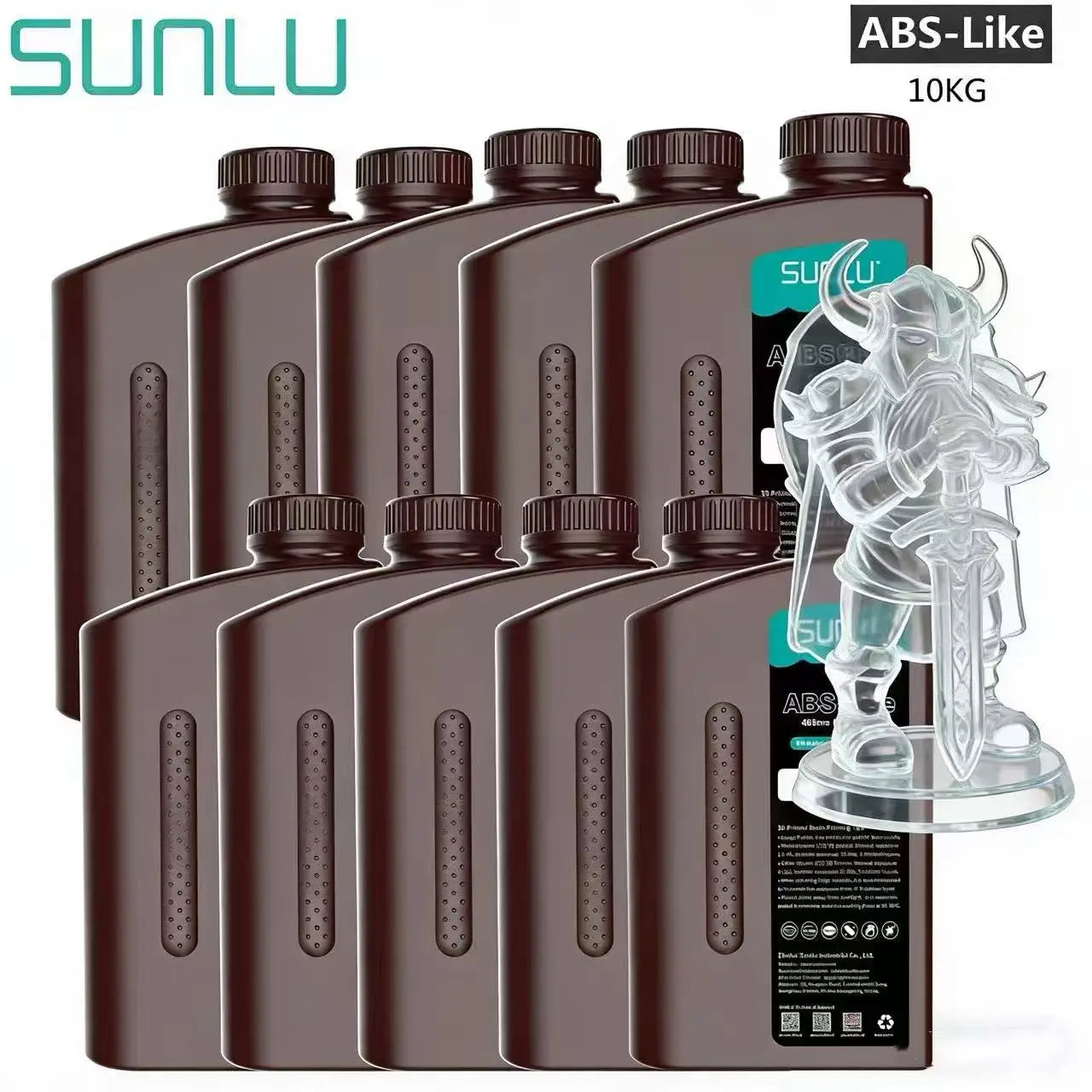

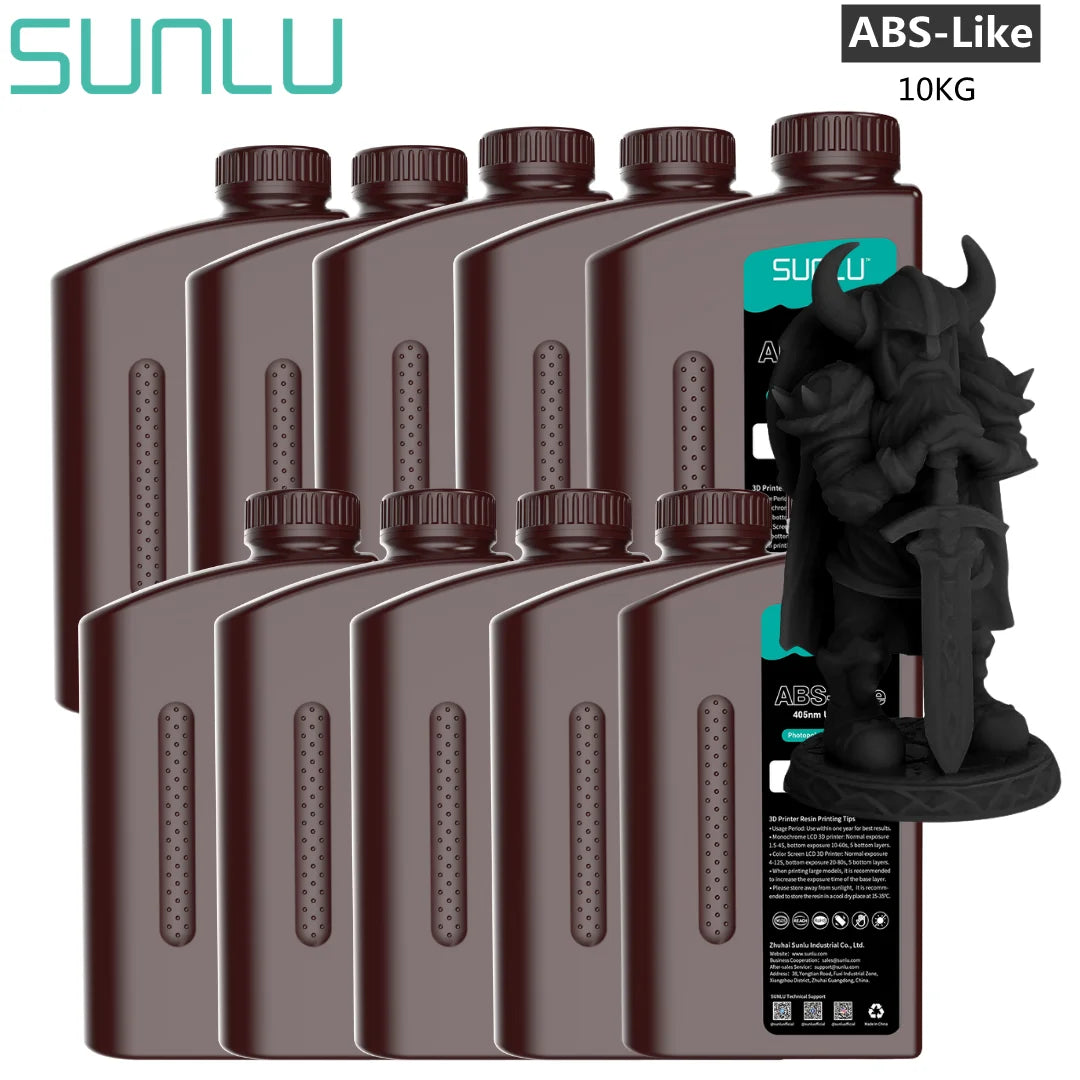

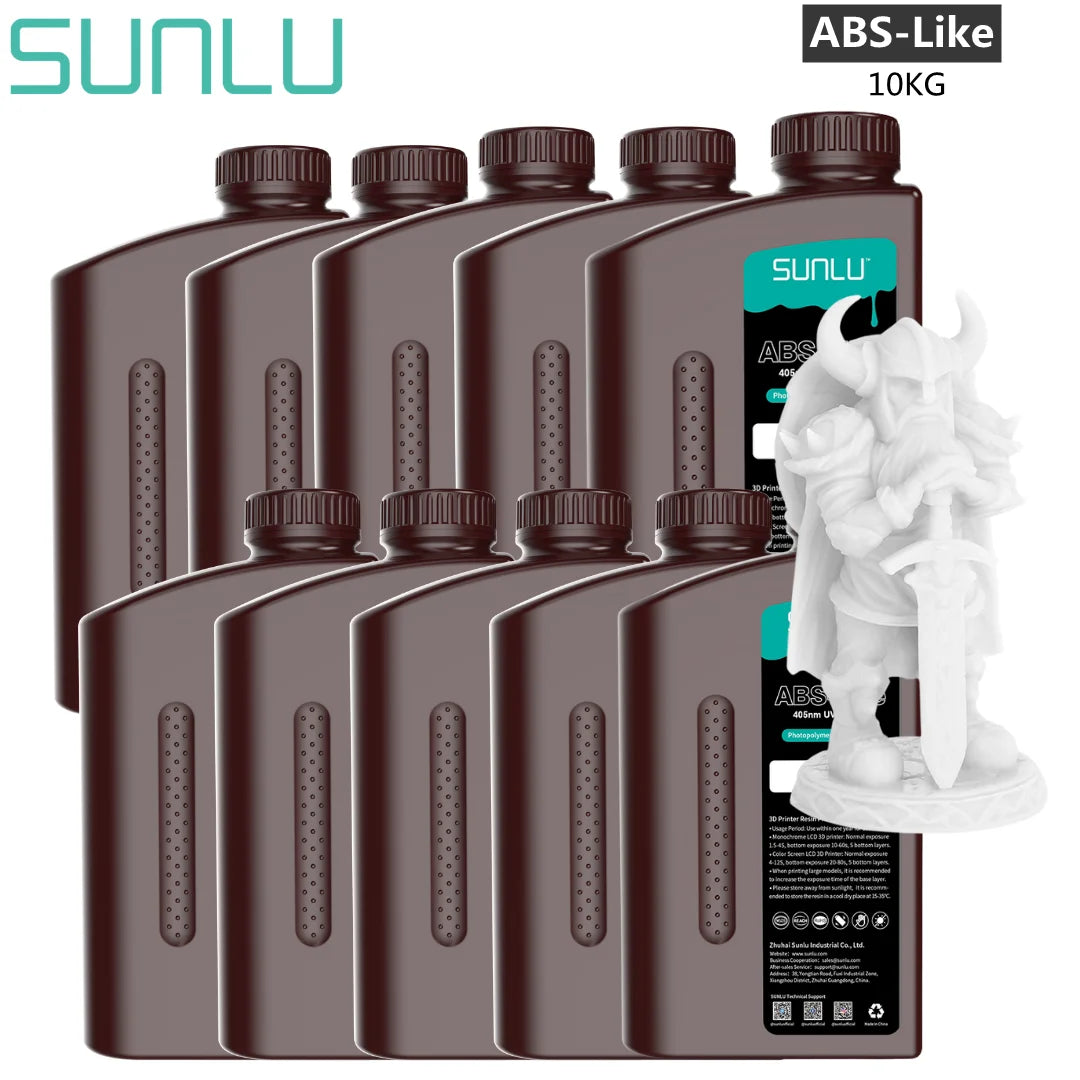

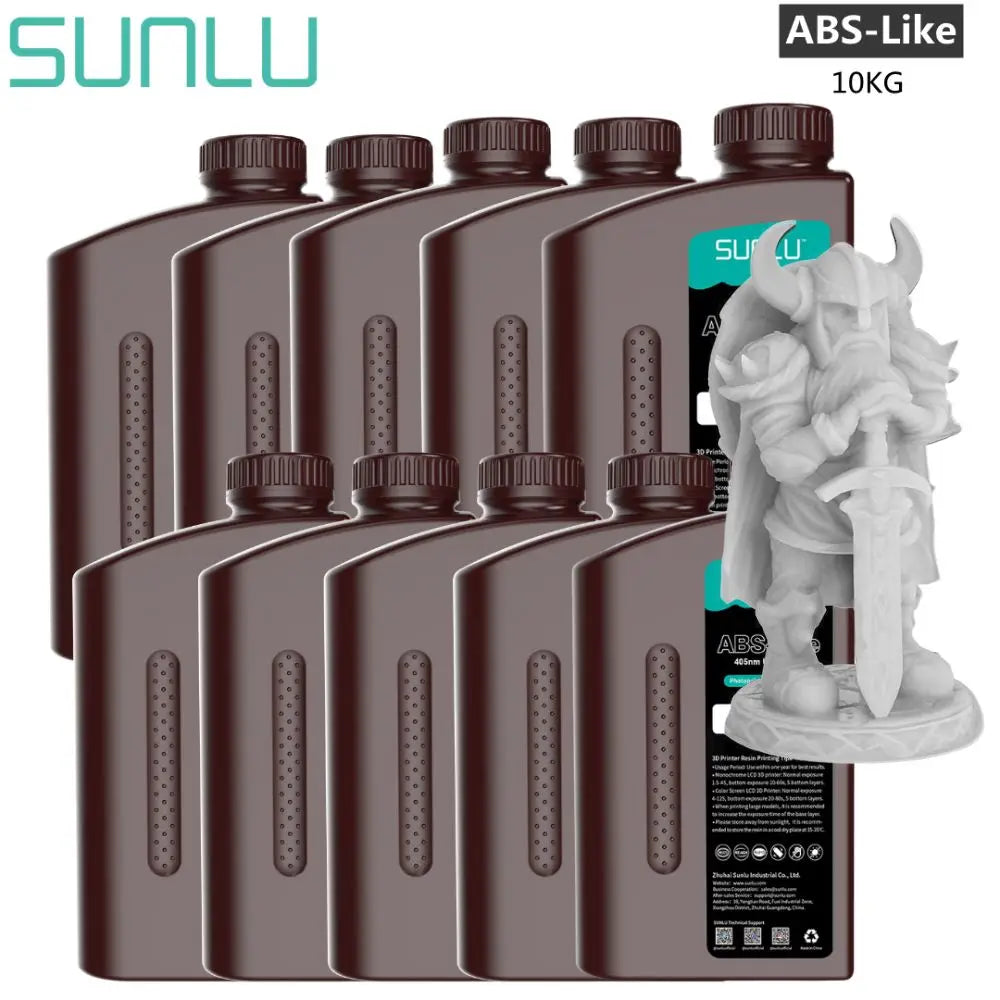

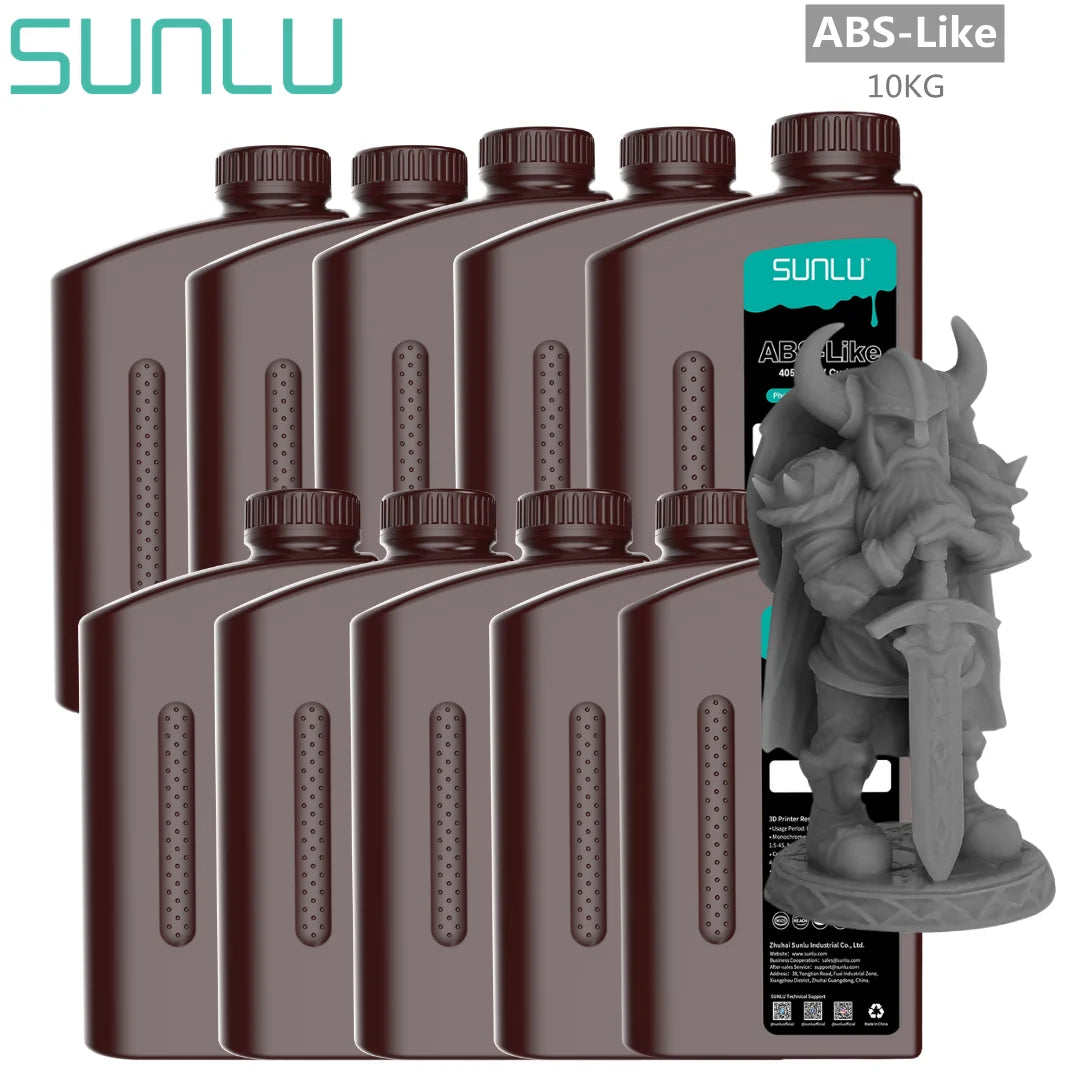

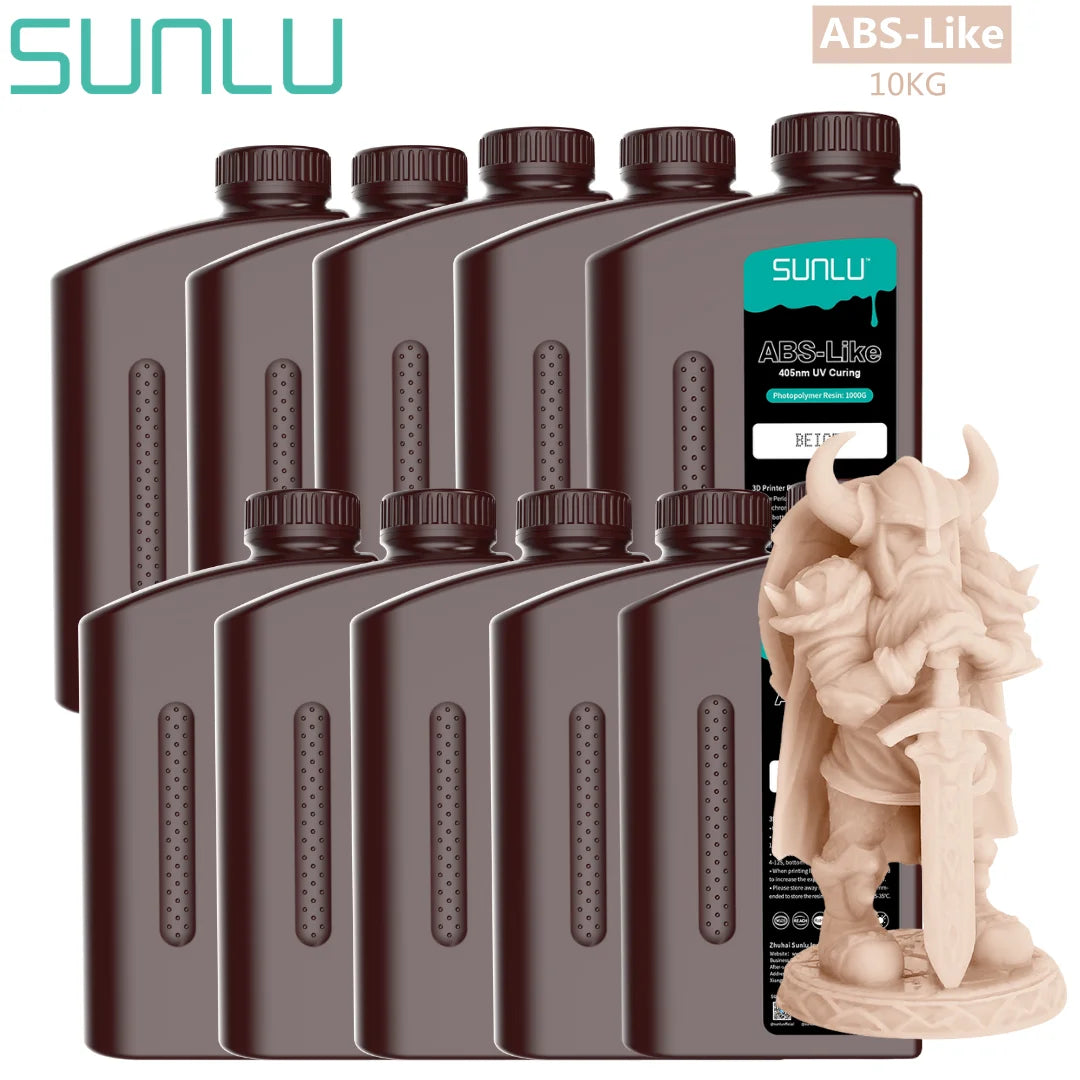

SUNLU UV ABS Like Resin 405nm 10KG Low Odor And Low Shrinkage For LCD 3D Printer Printing Material 3D Printing Fast Shipping

SUNLU UV ABS Like Resin 405nm 10KG Low Odor And Low Shrinkage For LCD 3D Printer Printing Material 3D Printing Fast Shipping

$247.98 USD
$0.00 USD $247.98 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

Bottom Exposure: 50s

Brand Name: SUNLU

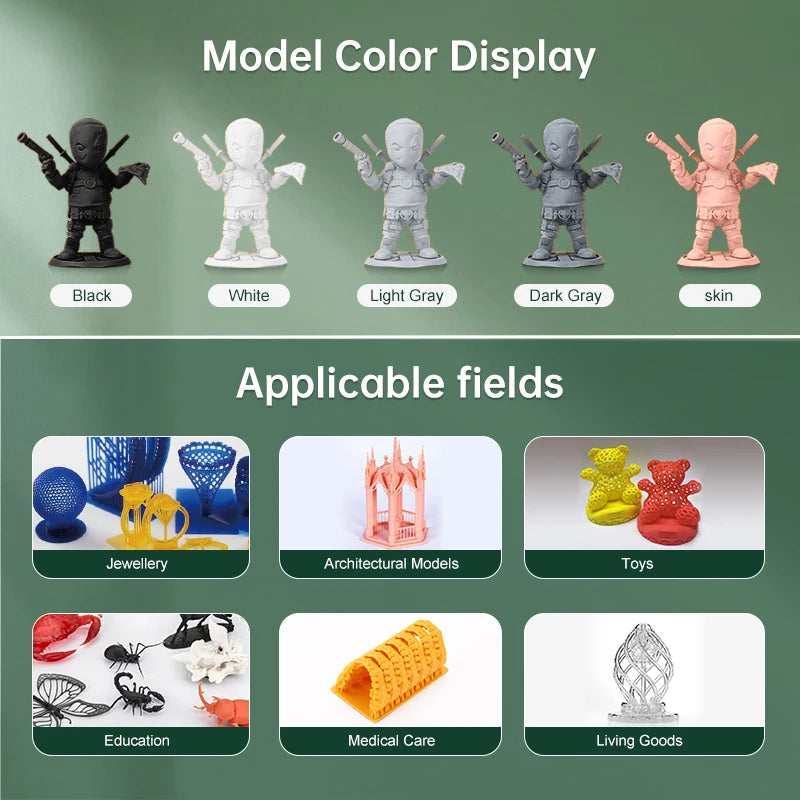

Color: black, white, light grey , dark grey

Form: Liquid

High-concerned chemical: None

Material: Photosensitive Resin,Resin

Normal Exposure: 8s

Origin: Mainland China

Shelf Life: 1years

Temps: 25-40℃

UV curing wavelength: 405nm

Weight: 1000g



SUNLU Resin UV ABS Like 10KG Low Odor And Low Shrinkage For LCD 3D Printer Printing Material 3D Printing Free Fast Shipping


Features：


Resin Parameters (Rigid Photosensitive Resin):

  • Lift Height: 6-10 mm
    Note: For machines ≥7 inches, lift height is recommended to be >8 mm; for ≥10 inches, >10 mm.

  • Lift Speed: 60-120 mm/min

  • Retract/Lowering Speed: 120-180 mm/min

  • Bottom Layers: 3-5 layers

  • Bottom Layer Exposure Time:

    • Color LCD Printers: 20-80 s

    • Monochrome LCD Printers: 10-60 s

  • Layer Exposure Time:

    • Color LCD Printers: 4-15 s

    • Monochrome LCD Printers: 2-4 s



Product Features (Rigid Photosensitive Resin):

  1. Standard Photosensitive Resin

    • Ideal for beginners and miniature/model printing.

    • User-friendly formulation with versatile applications.

  2. Key Advantages

    • Easy Molding: Smooth flow and rapid curing.

    • High Precision: Captures intricate details (XY resolution: ≤50 μm).

    • Low Odor: Reduced irritation during printing.

    • Cost-Effective: Superior performance at competitive pricing.

  3. Color Options

    • Comprehensive color range (10+ standard hues) with custom tinting support.



Printing Parameters for Rigid Photosensitive Resin

Lift & Movement Settings

  • Lift Height: 6-10 mm
    (Note: Recommended >8 mm for ≥7-inch build plates; >10 mm for ≥10-inch plates)

  • Lift Speed: 60-120 mm/min

  • Retract Speed: 120-180 mm/min

Exposure Settings

  • Bottom Layers: 3-5 layers

    • Bottom Layer Exposure:

      • Color LCD printers: 20-80 s

      • Monochrome LCD printers: 10-60 s

  • Normal Layer Exposure:

    • Color LCD printers: 4-15 s

    • Monochrome LCD printers: 2-4 s





Notes:

1. Shake well before use. It is recommended to stand upside down three times. It is forbidden to use resin in places exposed to sunlight.


2. Do not take orally. Keep away from children. Wear gloves before use to avoid direct contact with skin and maintain indoor ventilation; Do not get into eyes. In case of accidental contact, rinse with plenty of water as soon as possible. In case of discomfort, seek medical advice in time.


3. The printed resin model needs to be cleaned with high concentration alcohol (above 95% concentration is recommended, the higher the better) for about 30s; After cleaning to dry alcohol after secondary curing, so as to get the best performance.


4. The used resin in the chute shall not be put back into the unused resin, and the resin shall not be placed in the chute for a long time(if not for a long time, the resin can be imported into the container and sealed with plastic wrap for shading preservation), so as to avoid the contamination of the resin to affect the printing effect.


5. Store it away from light at room temperature. The sun contains ultraviolet rays, which will cure the photosensitive resin; It is recommended to store it at an ambient temperature of 15-35 ℃. The lower the temperature in winter, the higher the resin viscosity.


6. Sealed and stored to avoid dust or moisture, which will affect the printing quality.
